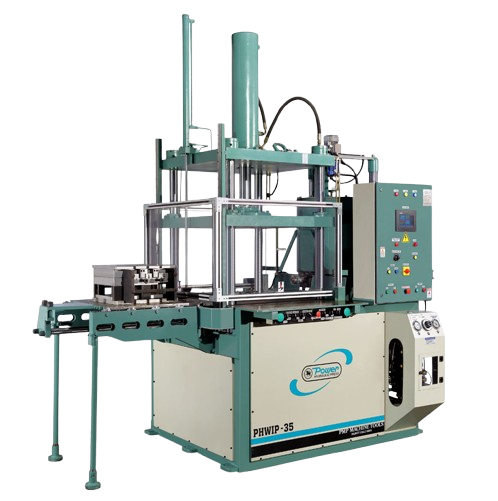

Wax Injection Machine
Automation Grade
Automatic
Specifications
- Frequency: 50 Hz
- Material: Mild Steel
- Power Source: Electric
- Voltage: 220 V
- Phase: 1 Phase
Description
PMP provides 6 Ton Wax Injection Machine to meet the demands of the modern investment casting industry. It features an innovative injection system with precise temperature control for the wax conditioner, injection chamber, and nozzle. The in-line injection system ensures smooth, laminar flow for accurate, repeatable injections.
The machine is modular in design, PLC-controlled, and optimized for both manual and semi-automatic operations. Designed for user-friendliness and easy maintenance.
Technical Specifications
| Particulers | 06 Ton | 12 Ton | 20 Ton | 35 Ton |
|---|
| Clamping Force | 06 Ton | 12 Ton | 20 Ton | 35 Ton |
| Admit Between Pillars | 350x350 mm | 450x450 mm | 550x550 mm | 650x650 mm |
| Daylight | 350 mm | 450 mm | 550 mm | 750 mm |
| Single Shot | 700 cc | 1500 cc | 2000 cc | 4000 cc |
| Table Height | 710 mm | 950 mm | 1000 mm | 1050 mm |
| Injection Force | 1.5 Ton | 3 Ton | 5 Ton | 9 Ton |
| Electric Load | 4 Kva | 8 Kva | 8 Kva | 9 Kva |
| Hyd. Pump HP | 3 | 5 | 5 | 5 |
| Nozzle Up/Down Adj. | 35–260 mm | 35–260 mm | 60–360 mm | 60–460 mm |
| Dwell Time | 0 – 999 Sec |
| Nozzle Tip | 10 mm Spherical Radius |
| Wax Tank | 17 Ltr | 30 Ltr | 30 Ltr | 60 Ltr |
| Tank Type | Aluminum Alloy Tube Type with Multi Band Heater & Motorised Stirrer |
| Temp. Controller | Independent PID Controllers (Tank & Block), Sunbeam for Nozzle |
| Auto Sequence | Auto Clamp Down → Wax Suction → Nozzle Out → Injection → Nozzle In → Clamp Up |
| Die Mounting | T-Slots in Upper & Lower Plates |
| Mould Ejector | Hydraulic with Adjustable Speed & Pressure |
| Platen Cooling | Optional (Extra Cost) |
